EPH Series
-

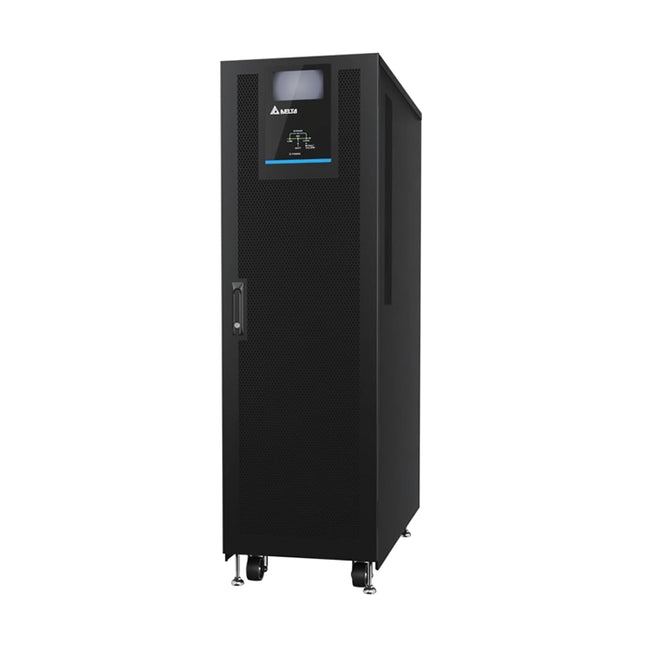

Delta EPH Series: Three-Phase Online UPS (Without Built-in Transformer) - EPH-200K
Three-Phase Online UPS,Rated Power:200kVA/200kW,Input Voltage:380/400/415Vac 3P4W+PE,Input Voltage Range:318-477Vac(100% Load)/190-323Vac and 477-518Vac(Derated to 50-100%),Input Power Factor:≥0.99,Input THDi:<5%,Output Voltage:220/380 or 230/400 or 240/415Vac 3P4W+PE,Output Power Factor:1,AC Mode Efficiency:95%,ECO Mode Efficiency:98%,Battery Mode Efficiency:94%,Battery Type:VRLA/Lithium-Ion,Battery Rated Voltage:±216Vdc(±192 to±240Vdc Adjustable),Max. Charging Current:54A,Number of Parallel Units:Up to 4 x,Ingress Protection:IP20,Dimensions (W×D×H):600×1000×1200mm,Net Weight:249kg,Operating Temperature:0~40℃
$100,714.29
-
Delta EPH Series: Three-Phase Online UPS (Without Built-in Transformer) - EPH-180K
Three-Phase Online UPS,Rated Power:180kVA/180kW,Input Voltage:380/400/415Vac 3P4W+PE,Input Voltage Range:318-477Vac(100% Load)/190-323Vac and 477-518Vac(Derated to 50-100%),Input Power Factor:≥0.99,Input THDi:<5%,Output Voltage:220/380 or 230/400 or 240/415Vac 3P4W+PE,Output Power Factor:1,AC Mode Efficiency:95%,ECO Mode Efficiency:98%,Battery Mode Efficiency:94%,Battery Type:VRLA/Lithium-Ion,Battery Rated Voltage:±216Vdc(±192 to±240Vdc Adjustable),Max. Charging Current:54A,Number of Parallel Units:Up to 4 x,Ingress Protection:IP20,Dimensions (W×D×H):600×1000×1200mm,Net Weight:249kg,Operating Temperature:0~40℃
$90,000.00
-
Delta EPH Series: Three-Phase Online UPS (Without Built-in Transformer) - EPH-120K
Three-Phase Online UPS,Rated Power:120kVA/120kW,Input Voltage:380/400/415Vac 3P4W+PE,Input Voltage Range:318-477Vac(100% Load)/190-323Vac and 477-518Vac(Derated to 50-100%),Input Power Factor:≥0.99,Input THDi:<5%,Output Voltage:220/380 or 230/400 or 240/415Vac 3P4W+PE,Output Power Factor:1,AC Mode Efficiency:95%,ECO Mode Efficiency:98%,Battery Mode Efficiency:94%,Battery Type:VRLA/Lithium-Ion,Battery Rated Voltage:±216Vdc(±192 to±240Vdc Adjustable),Max. Charging Current:36A,Number of Parallel Units:Up to 4 x,Ingress Protection:IP20,Dimensions (W×D×H):430×1000×1200mm,Net Weight:169kg,Operating Temperature:0~40℃
$60,000.00
