EPH-Tx Series

Three-Phase Online UPS Built-in Isolation Transformer,Rated Power:200kVA/200kW,Input Voltage:380/400/415Vac 3P4W+PE,Input Voltage Range:318-477Vac(100% Load)/190-323Vac and 477-518Vac(Derated to 50-100%),Input Power Factor:≥0.99,Input THDi:<5%,Output Voltage:220/380 or 230/400 or 240/415Vac 3P4W+PE,Output Power Factor:1,AC Mode Efficiency:Up to 92.3%,ECO Mode Efficiency:Up to 95.8%,Battery Mode Efficiency:Up to 91.3%,Battery Type:VRLA/Lithium-Ion,Battery Rated Voltage:±216Vdc(±192 to±240Vdc Adjustable),Max. Charging Current:54A,Number of Parallel Units:Up to 4 x,Ingress Protection:IP20,Dimensions (W×D×H):600×1100×2000mm,Net Weight:888kg,Operating Temperature:0~40℃

Read more less

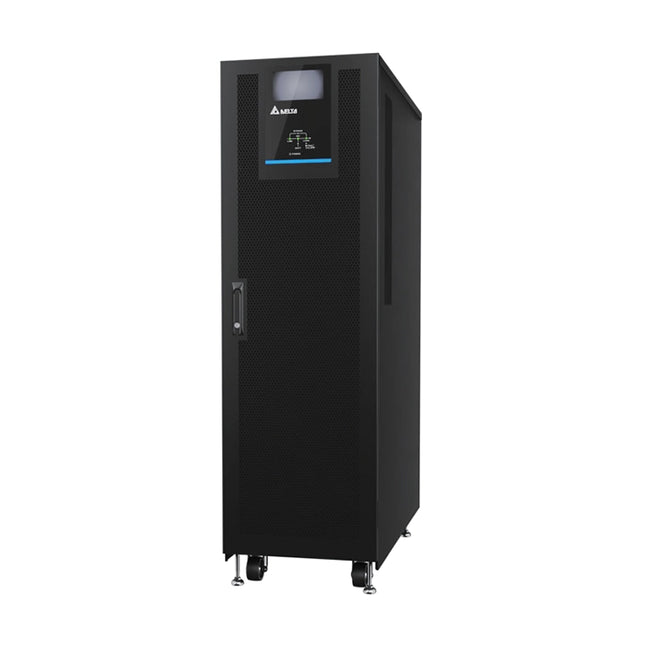

Three-Phase Online UPS Built-in Isolation Transformer,Rated Power:120kVA/120kW,Input Voltage:380/400/415Vac 3P4W+PE,Input Voltage Range:318-477Vac(100% Load)/190-323Vac and 477-518Vac(Derated to 50-100%),Input Power Factor:≥0.99,Input THDi:<5%,Output Voltage:220/380 or 230/400 or 240/415Vac 3P4W+PE,Output Power Factor:1,AC Mode Efficiency:Up to 92.3%,ECO Mode Efficiency:Up to 95.8%,Battery Mode Efficiency:Up to 91.3%,Battery Type:VRLA/Lithium-Ion,Battery Rated Voltage:±216Vdc(±192 to±240Vdc Adjustable),Max. Charging Current:36A,Number of Parallel Units:Up to 4 x,Ingress Protection:IP20,Dimensions (W×D×H):480×1000×1600mm,Net Weight:536kg,Operating Temperature:0~40℃

Read more less
