HIFT Series
-
Delta HIFT Series: Intelligent Fault-Tolerant Three-Phase UPS System (UPS) - GES-HIFT120K
Intelligent Fault-Tolerant Three-Phase UPS System (UPS),Series:Modulon HIFT Series,Rated Capacity:120kVA,Rated Power:96kW,Rated Input Voltage:380/220Vac(3-Phase 4 Cable+Ground Wire),Input Voltage Range:208~477Vac(Live Wire-Live Wire)/120~276Vac(Live Wire-Neutral Wire),Input Current Total Harmonic Distortion:<3%,Input Power Factor:>0.99,Input Frequency Range:50/60±5Hz,Rated Output Voltage:380/220Vac(3-Phase 4 Cable+Ground Wire),Output Voltage Waveform Distortion:≤3%(Linear Load),Output Voltage Regulation:±1%,Rated Output Frequency:50/60Hz,Output Frequency Stability:±0.05Hz(Internal Oscillator)/≤1Hz/s(Synchronized with Utility),Overload Capacity:≤125% Continuous 10 min/≤150% Continuous 1 min,Standard Interface:RS232×1/Smart Card Slot×2/Dry Contact Output×6/Dry Contact Input×2/Battery Cabinet Temperature×4/Battery Cabinet Status×1/Parallel Port×2/REPO×1,Optional Accessory:SNMP Card/Modbus Card/Relay I/O Control Card/Environmental Detector/SNMP hub/Battery Cabinet Temperature Detector/Battery Cabinet Status Cable,Certification:CE/EN62040-1/EN62040-2 Class A,Parallel Redundancy Expansion:Max. Parallel Units 4 x (Max. Capacity 480kVA),Emergency Power Off (EPO):Local and Remote,Event Log:500 records,AC-AC Efficiency:94%,ECO Economy Mode Efficiency:97%,Operating Temperature:0~40℃,Relative Humidity:0~95%(Non-Condensing),Noise:64dBA(1 m ahead),UPS Dimensions (W×D×H):520×975×1695mm,Weight:380kg
$96,000.00
-

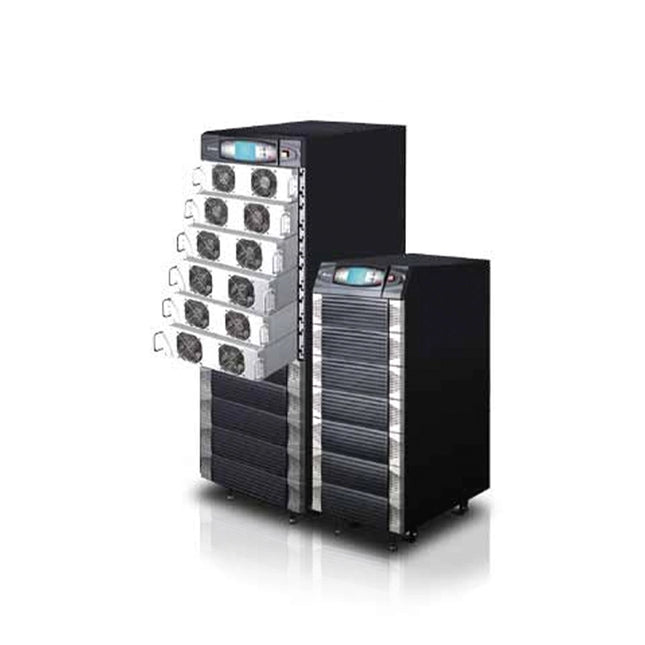

Delta HIFT Series: Intelligent Fault-Tolerant Three-Phase UPS System (UPS) - GES-HIFT100K
Intelligent Fault-Tolerant Three-Phase UPS System (UPS),Series:Modulon HIFT Series,Rated Capacity:100kVA,Rated Power:80kW,Rated Input Voltage:380/220Vac(3-Phase 4 Cable+Ground Wire),Input Voltage Range:208~477Vac(Live Wire-Live Wire)/120~276Vac(Live Wire-Neutral Wire),Input Current Total Harmonic Distortion:<3%,Input Power Factor:>0.99,Input Frequency Range:50/60±5Hz,Rated Output Voltage:380/220Vac(3-Phase 4 Cable+Ground Wire),Output Voltage Waveform Distortion:≤3%(Linear Load),Output Voltage Regulation:±1%,Rated Output Frequency:50/60Hz,Output Frequency Stability:±0.05Hz(Internal Oscillator)/≤1Hz/s(Synchronized with Utility),Overload Capacity:≤125% Continuous 10 min/≤150% Continuous 1 min,Standard Interface:RS232×1/Smart Card Slot×2/Dry Contact Output×6/Dry Contact Input×2/Battery Cabinet Temperature×4/Battery Cabinet Status×1/Parallel Port×2/REPO×1,Optional Accessory:SNMP Card/Modbus Card/Relay I/O Control Card/Environmental Detector/SNMP hub/Battery Cabinet Temperature Detector/Battery Cabinet Status Cable,Certification:CE/EN62040-1/EN62040-2 Class A,Parallel Redundancy Expansion:Max. Parallel Units 4 x (Max. Capacity 480kVA),Emergency Power Off (EPO):Local and Remote,Event Log:500 records,AC-AC Efficiency:94%,ECO Economy Mode Efficiency:97%,Operating Temperature:0~40℃,Relative Humidity:0~95%(Non-Condensing),Noise:63dBA(1 m ahead),UPS Dimensions (W×D×H):520×975×1695mm,Weight:350kg
$81,428.57
-
Delta HIFT Series: Intelligent Fault-Tolerant Three-Phase UPS System (UPS) - GES-HIFT20K
Intelligent Fault-Tolerant Three-Phase UPS System (UPS),Series:Modulon HIFT Series,Rated Capacity:20kVA,Rated Power:16kW,Rated Input Voltage:380/220Vac(3-Phase 4 Cable+Ground Wire),Input Voltage Range:208~477Vac(Live Wire-Live Wire)/120~276Vac(Live Wire-Neutral Wire),Input Current Total Harmonic Distortion:<3%,Input Power Factor:>0.99,Input Frequency Range:50/60±5Hz,Rated Output Voltage:380/220Vac(3-Phase 4 Cable+Ground Wire),Output Voltage Waveform Distortion:≤3%(Linear Load),Output Voltage Regulation:±1%,Rated Output Frequency:50/60Hz,Output Frequency Stability:±0.05Hz(Internal Oscillator)/≤1Hz/s(Synchronized with Utility),Overload Capacity:≤125% Continuous 10 min/≤150% Continuous 1 min,Standard Interface:RS232×1/Smart Card Slot×2/Dry Contact Output×6/Dry Contact Input×2/Battery Cabinet Temperature×4/Battery Cabinet Status×1/Parallel Port×2/REPO×1,Optional Accessory:SNMP Card/Modbus Card/Relay I/O Control Card/Environmental Detector/SNMP hub/Battery Cabinet Temperature Detector/Battery Cabinet Status Cable,Certification:CE/EN62040-1/EN62040-2 Class A,Parallel Redundancy Expansion:Max. Parallel Units 4 x (Max. Capacity 480kVA),Emergency Power Off (EPO):Local and Remote,Event Log:500 records,AC-AC Efficiency:94%,ECO Economy Mode Efficiency:97%,Operating Temperature:0~40℃,Relative Humidity:0~95%(Non-Condensing),Noise:60dBA(1 m ahead),UPS Dimensions (W×D×H):520×910×1165mm,Weight:170kg
$20,571.43
