LD-E Series
-

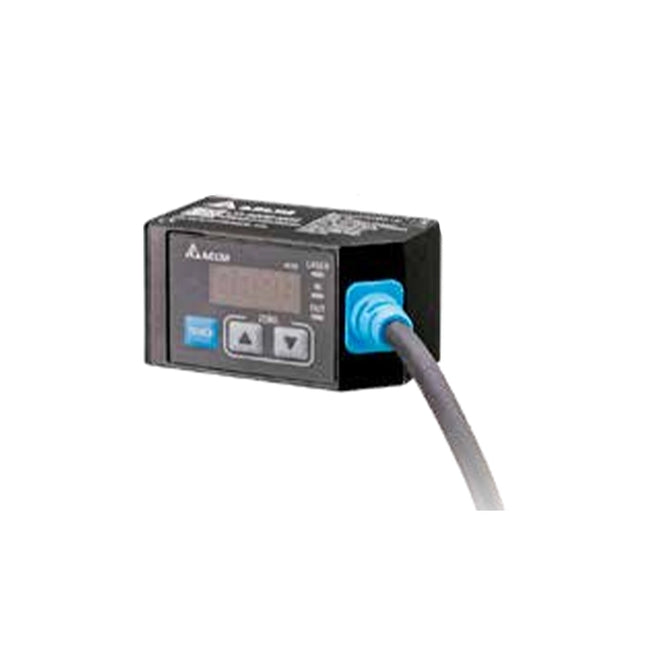

Delta LD-E Series: Laser Displacement Sensor - LD-500E-M22
Laser Displacement Sensor (Laser Displacement Sensor,CMOS),Measurement Center Distance:500mm,Measuring Range:±200mm,Spot Diameter (Center Position):approx. 541×330μm,Linearity:±0.2%F.S(300~500mm)/±0.3%F.S(500~700mm),Repeatability:300μm(300~500mm)/800μm(500~700mm),Sampling Frequency:1.5/3/5(Factory Setting 1.5)ms,Communication Interface:Digital I/O/Analog 4~20mA/Modbus RS-485,Certification:CE
$2,700.00
-
Delta LD-E Series: Laser Displacement Sensor - LD-050E-M22
Laser Displacement Sensor (Laser Displacement Sensor,CMOS),Measurement Center Distance:50mm,Measuring Range:±15mm,Spot Diameter (Center Position):approx. 80×70μm,Linearity:±0.1%F.S,Repeatability:15μm,Sampling Frequency:1.5/3/5(Factory Setting 1.5)ms,Communication Interface:Digital I/O/Analog 4~20mA/Modbus RS-485,Certification:CE
$2,014.29
-
Delta LD-E Series: Laser Displacement Sensor - LD-220E-M22
Laser Displacement Sensor (Laser Displacement Sensor,CMOS),Measurement Center Distance:220mm,Measuring Range:±100mm,Spot Diameter (Center Position):approx. 290×238μm,Linearity:±0.2%F.S,Repeatability:200μm,Sampling Frequency:1.5/3/5(Factory Setting 1.5)ms,Communication Interface:Digital I/O/Analog 4~20mA/Modbus RS-485,Certification:CE
$2,357.14
-
Delta LD-E Series: Laser Displacement Sensor - LD-100E-M22
Laser Displacement Sensor (Laser Displacement Sensor,CMOS),Measurement Center Distance:100mm,Measuring Range:±35mm,Spot Diameter (Center Position):approx. 136×110μm,Linearity:±0.1%F.S,Repeatability:70μm,Sampling Frequency:1.5/3/5(Factory Setting 1.5)ms,Communication Interface:Digital I/O/Analog 4~20mA/Modbus RS-485,Certification:CE
$2,142.86
-
Delta LD-E Series: Laser Displacement Sensor - LD-030E-M22
Laser Displacement Sensor (Laser Displacement Sensor,CMOS),Measurement Center Distance:30mm,Measuring Range:±5mm,Spot Diameter (Center Position):approx. 100×100μm,Linearity:±0.1%F.S,Repeatability:5μm,Sampling Frequency:1.5/3/5(Factory Setting 1.5)ms,Communication Interface:Digital I/O/Analog 4~20mA/Modbus RS-485,Certification:CE
$1,928.57
